Description

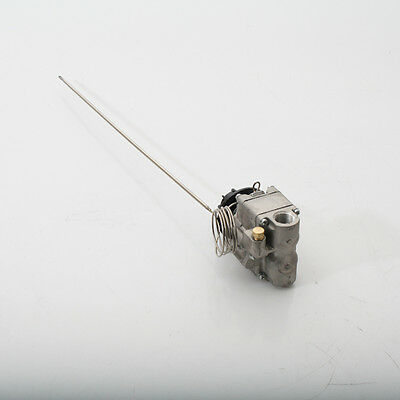

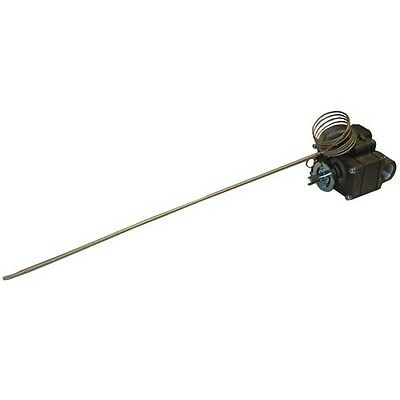

[ FDTH-1 ] [ TEMP 300-650 ] [ BULB 3/16" X 14-3/4"
BAKERS PRIDE OVEN 104P, 151, 204P, 251, 304P, 351, 404P,NICKEL ] [ CAP 48 ] [ GAS 1/2 FPT IN/OUT, GAS IN: (SIDE) F ] GAS OUT: (SIDE) E [ DIAL # 22-1011 (300-650) BLACK & SILVER T'STAT KNOB FOR FD T'STAT, 4-WAY MOUNT ] [BAKERS PRIDE DIAL # 22-1202 (300-650) BLACK PRINTED DIAL FOR FD T'STAT, FLAT DOWN ] NOTE: THE BYPASS SCREW IS BACKED ALL THE WAY OUT ALLOWING GAS TO FLOW IN THE OFF POSITION. IT SHOULD BE TURNED IN AND THEN ADJUSTED FOR THE PROPER BYPASS FLAME. 451, 922, 932, Y600, Y612, Y800. SERIES: GS805, DS805, D125. SERIES: FC GAS (WITH STANDARD T'STAT, NOT HIGH HEAT) COMSTOCK CASTLE OVEN WHERE APPLICABLE LINCOLN OVEN SERIES: 1000, 1200. MONTAGUE OVEN 13P-1, 14P-1, 23P-2, 24P-2. [ DIAL # 22-1011 300-650 ] |
