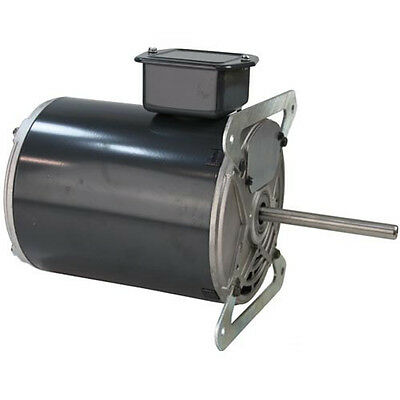

Description
[ 115V, 50/60HZ ] [ .5/.25 HP, ] [1P ] [1725/1140 RPM ][7.2/4.5AMP ] [CW ROTATION ] FRAME 56Z, 2 SPEED.
[ 1/2" X 4-1/2" SHAFT W/ 2 FLATS]
WHITE COMMON
BLACK POWER TO FAN SWITCH - HI
RED POWER TO FAN SWITCH - LO
BLUE/PURPLE OR BROWN/BROWN TO CENTRIFUGAL SWITCH.
IF OVEN DOES NOT HAVE CENTRIFUGAL SWITCH THEN
WIRE TOGETHER W/ WIRE NUT.
IF ONLY USING FOR ONE SPEED, THEN WIRE NUT RED WIRE.
SOUTHBEND
OVEN SERIES:300,400,B,BBB,GB, GS, EH,P, SLGS
