- Fits All Englander pellet stoves that have a 3 stud mount
- 25-EP, 25-EPI, 25-PDVC
* Existing fan impeller wheel and housing will be used with this kit.

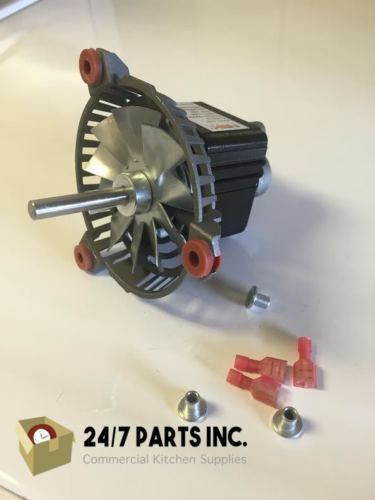

* This is a replacement Convection Fan Motor for Englander stoves that have the blower motor PU-4c442. We also use this same motor for the combustion / exhaust fan. This listing is the motor only and will fit Englander stove models that have a 3 stud mount. For other models that have a 4 or 5 stud mount you will be required to use an adapter plate and self tapping screws
* Simple wire connection to the existing - Green wire is a ground, if your unit doesn't have an existing ground wire then it doesn't need to be connected.
* Lubrication such as WD40 can be helpful in removing the fan paddle wheel/impeller. (In most units an allen wrench or torx bit will be needed to remove fan paddle.)
- Part Numbers:
~ PU-4c442 / PH-UNIVCOMB
- Specs:
~ Includes Motor Only
~ 3000 RPM, Clockwise Rotation
~ 120V AC, 60Hz, 1.75 Amps
~ 5/16” Diameter x 1 13/16” Length Shaft
50200
